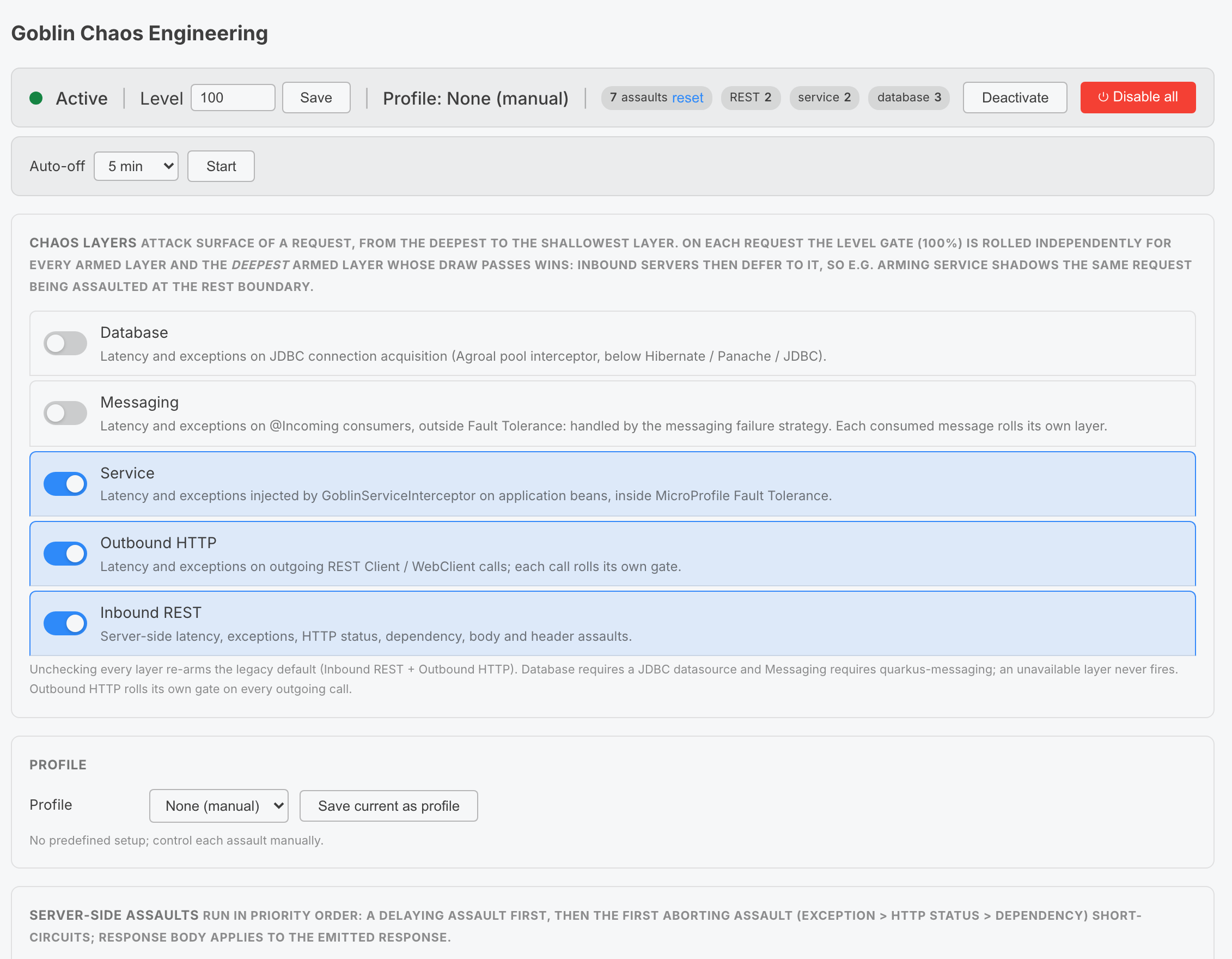

Dev UI panel

Master toggle — Activate/deactivate all chaos with a single click. When inactive, the status dot turns red and the Deactivate button becomes Activate.

Kill switch — Turn every assault off at once: deactivates the engine, disables each assault type and client-side assault, and resets the profile to NONE.

Auto-off — Optionally deactivate chaos automatically after 5, 10, 30 or 60 minutes. A countdown shows the remaining time and can be cancelled; the deadline is kept in the browser, so it survives a page reload.

Blast radius warning — A banner warns when chaos is active with two or more server-side assaults at a 100% level: every eligible request is then assaulted.

Live counters — The status bar shows the total number of assaults since the last reset (with a reset action) and one chip per source that fired (REST, service, database, messaging, REST client, WebClient), refreshed every 2 seconds together with the config.

Profile selector — Pick a predefined composite assault mode (NONE, SLOW_FAILURE, INTERMITTENT, TIMEOUT) with one click. The active profile is also shown in the status bar. Individual toggles stay overridable on top of the profile.

Custom profiles — Save the current configuration under a custom name (Save current as profile), and re-apply it later from the profile selector. Custom profiles are stored in the browser; the active one is named in the status bar, and an override marker appears when the toggles no longer match the active profile.

Assault type toggles — Independent on/off switches for each assault type (Latency, Exception, HTTP Status, Dependency Degradation, Response Body, Response Header). Multiple types can be active simultaneously. Enabled types are highlighted with the Quarkus primary color, and each row shows its priority.

Priority ordering — Assault types are grouped by execution priority: the server-side assaults and client-side assaults that preempt normal request processing form the preemptive group; the terminal response damaging transformations (truncate/inflate body, header rules, HTTP status substitution) form the final group.

Client-side assault toggles — A dedicated section controls client latency and client exception, applied to outgoing MicroProfile REST Client and Vert.x WebClient calls. They default to off and reuse the latency range and exception class/message configured above.

Quick picks — One-click presets in the Exception section (verified exception classes, served by the engine and guaranteed to be throwable — no fallback) and in the HTTP Status section (500, 503, 429, 404), applied immediately.

Config sections — Each assault type has its own configuration section (latency range, exception class/message, HTTP status code/message, response body mode/percentage, response header rules as editable rows with a single Save headers action). Sections are always visible but disabled with placeholder text when the type is off. Enable the type to edit its parameters. Every section has its own Save button; the button is only enabled when the form is dirty and valid.

Inline validation — Entering an out-of-range value disables the Save button and shows a warning — nothing invalid is ever persisted. Validation rules match the startup rules (see Configuration validation).

Target level — Adjust the percentage of affected requests (0-100%) on the fly from the status bar, saved with its own button.

Chaos layers — One check-box per chaos layer (DATABASE, MESSAGING, SERVICE, HTTP_OUT, HTTP_IN) shown in ascending order next to the level slider. Only the checked layers are candidates each request; the deepest layer whose probability roll passes wins for that request (see Chaos layers). DATABASE (requires a JDBC datasource) and MESSAGING (requires quarkus-messaging) are displayed as unavailable and cannot be checked when the application lacks the matching extension. By default HTTP_IN and HTTP_OUT are armed, which keeps the pre-layers behaviour.

Danger zone — Export the current configuration as a JSON file, import a previously exported one (or any partial config), or reset the whole configuration to its defaults.

All changes apply instantly — no restart needed. A WARN log is emitted in the console for every change, and a toast confirms each action in the UI. If a change violates a validation rule (see Configuration validation), the toast shows the applied correction, e.g. a swapped latency range.

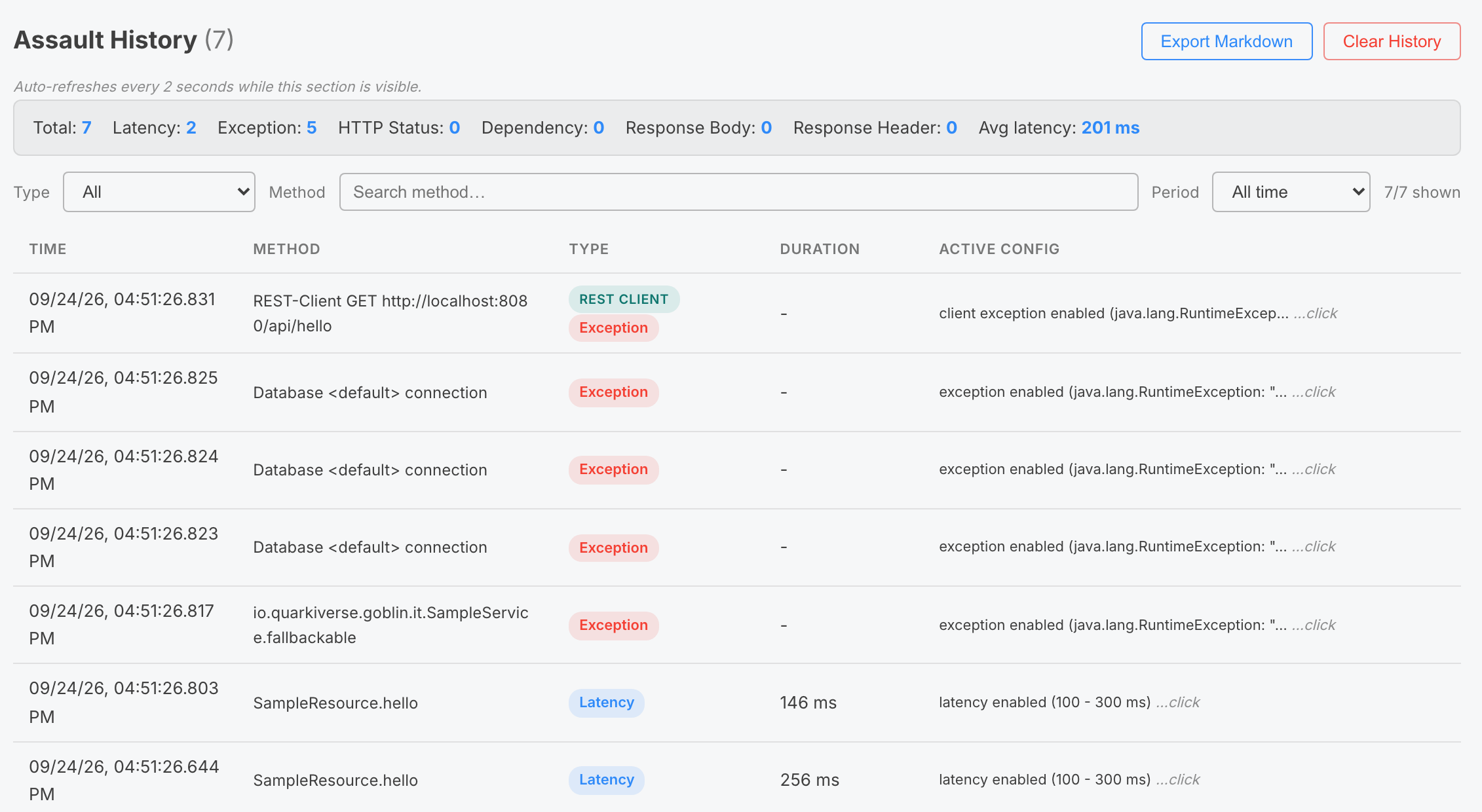

the timestamp of the assault — millisecond precision, with the full ISO timestamp shown on hover

the assaulted target: the resource method (SampleResource.hello), the application bean method (SERVICE), Database <datasource> connection, Messaging <consumer>, or the outgoing call (REST-Client GET <url>, WebClient GET <url>)

the assault type shown as a colored badge — Latency, Exception, HTTP Status, Dependency, and for response body assaults two distinct badges depending on the mode: Truncate (response-body-truncate) and Inflate (response-body-inflate). Response header rules are shown as Header Set: <name> / Header Remove: <name>

the actual applied latency duration when the assault was a latency injection

the active assault configuration at the time of the assault, stored compactly in an Active Config cell — click the cell to expand or collapse it

the current status (active/inactive) and target level

the current assault configuration (active profile, armed chaos layers, latency, exception, HTTP status, dependency degradation, response body toggles and values, response header rules, client-side assault toggles)

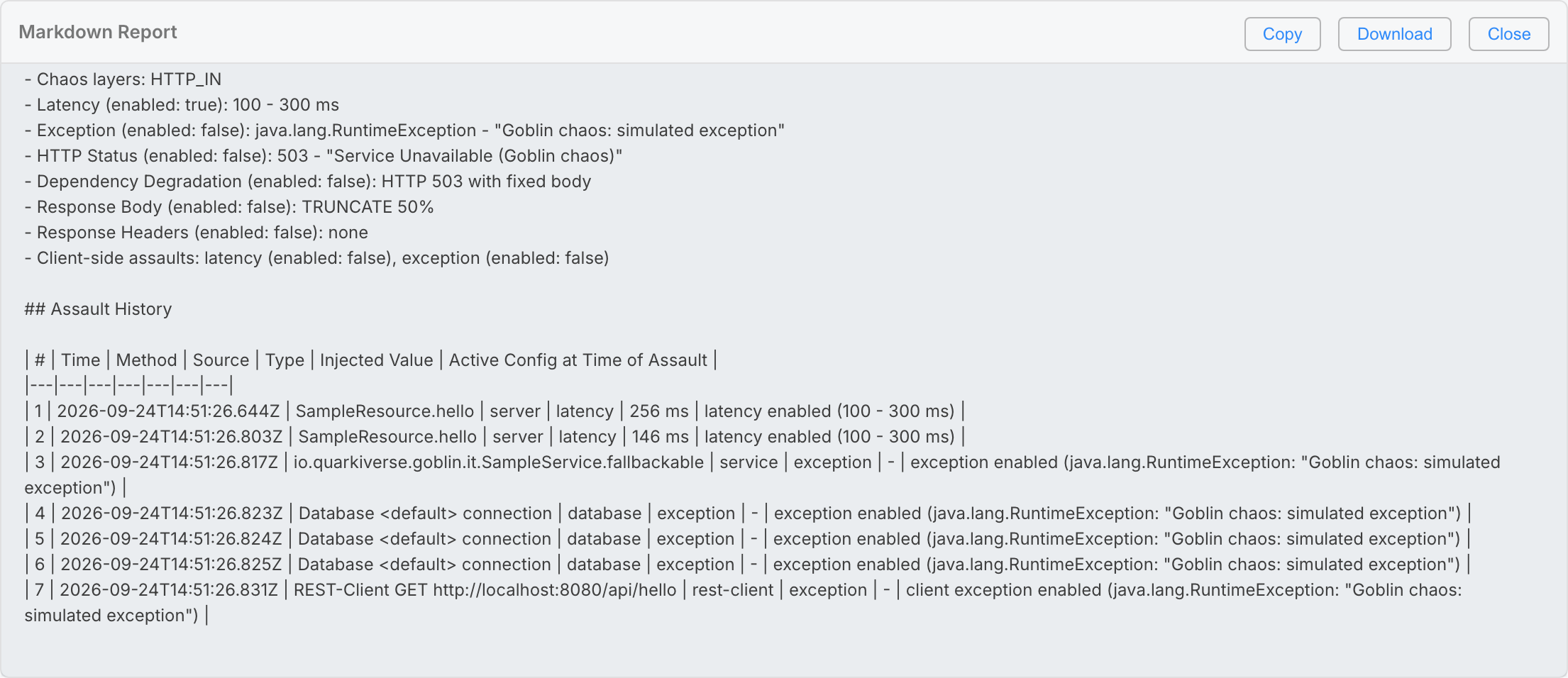

the full assault history, including the source of each assault (server, service, database, messaging, rest-client, webclient), the actual latency duration applied for each latency assault and a snapshot of the active configuration at the time of each assault — so a config change between two calls is clearly visible (e.g. latency enabled (100 - 500 ms) vs latency enabled (1000 - 5000 ms))
